Three-level NPC Topology, Multi-source IGBT Technology

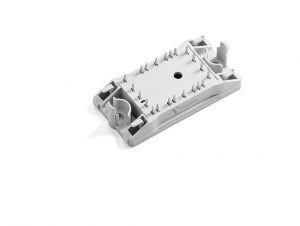

Vincotech today announced the launch of new neutral-point-clamped power modules. The flowNPC 0 line features the latest IGBT technologies in a combination engineered to optimize cost and efficiency for three-phase solar and UPS applications.

Rated for 650 V / 100 A, these flowNPC 0 power modules are able to deliver switching frequencies up to 50 kHz even without SiC technology. Their chipset has been optimized to deliver the best performance at real power, yet they retain high reactive power capability to offer best-in-class power density. This enables engineers to craft lighter, more compact designs for three-phase solar and UPS applications. The ability of real multiple chip sourcing improves component supply security.

Both modules are available with Press-fit and solder pins, without adding any non-recurring engineering costs to the bottom line. Samples of the ultra-efficient flowNPC 0 modules may be sourced on demand from our usual channels.

Benefits:

Highest efficiency at lowest price
Increased supply chain security
Enables smaller and lighter passive components
Enables best-in-class power density
Easy assembly

flowNPC 0 - feasible up to 100 A

+33 % more output power compared to previous NPC generation
Same pinout as the previous NPC generation à small redesign effort
Enhanced thermal performance with the new Al₂O₃ DCB

General Features

Diodes optimized for solar and UPS applications
Real chip multi-source
Optimized for frequencies up to 32 kHz
Ideal for solutions up to 40 kVA
Available with PCM and Press-fit pins

To learn more about Vincotech’s new multi-source flowNPC 0 featuring highest efficiency at lowest price, please visit:

www.vincotech.com/flowNPC-0-100A

To see Vincotech’s entire range of power modules, please visit: http://www.vincotech.com/products/by-topologies.html
